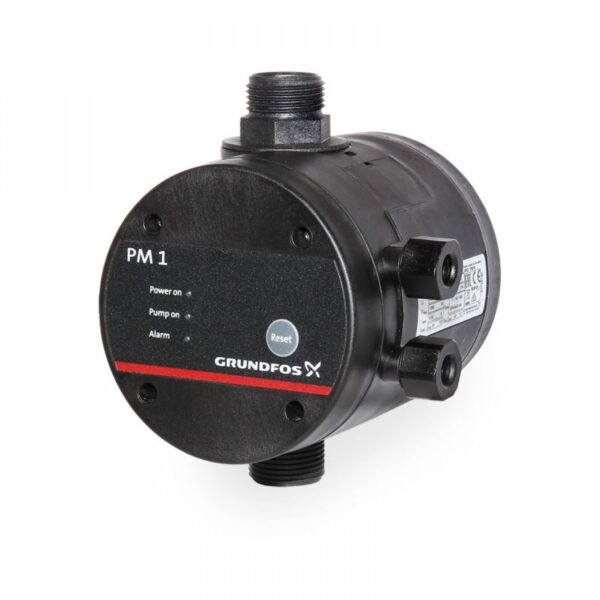

Automatic For Residential Water Pumps PM1-2.2 BAR

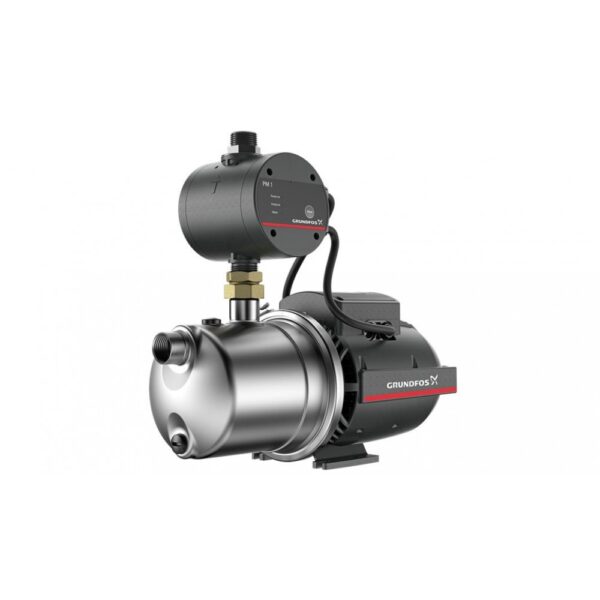

Automatic For Residential Water Pumps – PM1 2.2 BAR PM 1 is a pressure manager designed for automatic start/stop control of Grundfos pumps and other water supply pumps. PM 1 offers basic control features as well as dry-running protection and cycling alarm Item Specifics Technical Approvals CE,C-TICK,EAC,WEEE Return valve YES Adjustable start pressure N Start pressure 31.91 psi Tank volume 0.026 gal Installation t max amb 131 °F Cut-in pressure 31.91 psi Inlet connect G1″ Outlet connect G1″ Inlet thread External Outlet thread External Pres. Read-out NO Liquid Liquid temperature range 32 .. 140 °F Electrical data P1 max. 1200 W Main frequency 50 / 60 Hz Suitable for 50/60 Hz YES Rated voltage 1 x 220-240 V Maximum current consumption 10 A Enclosure class (IEC 34-5) IP65 Controls Dry running protection YES Others Net weight 1.96 lb Gross weight 3.64 lb Shipping volume 0.28 ft³
