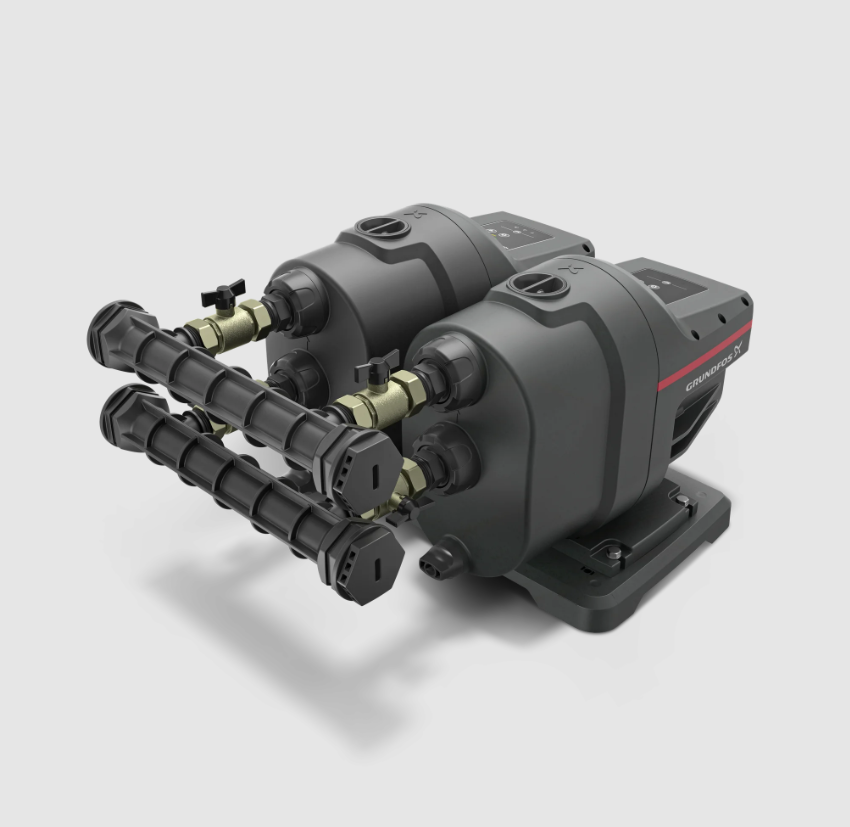

Grundfos Booster pump sets (Smart Water Pump SCALA1 1Duty 1 Standby)

Grundfos Booster pump sets (Smart Water Pump SCALA1 1Duty 1 Standby)   Grundfos Water Pump SCALA1 3-45/ 0.764 HP SCALA1 is a fully intergrated, compact self-priming, pressure booster for domestic use. It can communicate with Grundfos GO Remote app via built-in Bluetooth technology enabling high customization options. Suitable for :  Plumbing: Pressure Boosting Residential groundwater intake Residential water pressure boosting Residential rainwater harvesting Quotation : The Grundfos SCALA1 is a self-priming, multistage pump, that incorporates all the components of a pressure booster into a compact composite enclosure. As it is self-priming, the SCALA1 can pump water from a level below the pump. Provided it is filled with water, the pump can lift water from a depth of 8 m in less than 5 minutes. This facilitates easy installation and start-up of the pump and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes. SCALA1 can communicate with Grundfos GO app via built in Bluetooth, which enables detailed pump monitoring and high customization options, making this pump a good fit for every application. SCALA1 incorporates advanced protection features such as: Dry running protection that will automatically stop the pump in case of water shortage Cycling protection which will prevent pump starting frequently in case of minor leakages in installation Max runtime protection can stop the pump after a desired period of continuous operation, preventing potential damage due flooding in case of pipe breakages. The pump has a built-in motor protection that will stop the pump if exposed to excessive temperature due to high ambient temperature, in case of seizure or overload, thus preventing a motor burnout. With Grundfos GO you can easily setup SCALA1 as a Twin booster system, operating as duty/stand by as well as duty/assist. It is also possible to add external input control and schedule a pump operation via calendar function. SCALA1 require no maintenance, but it is recommended to keep the pump clean, check the non-return valves and keep the ventilation holes free of dust. Item Specifics: Technical Rated flow 14 US gpm Rated head 82.02 ft Maximum head 147.6 ft Primary shaft seal BVBP Approvals CE Approvals for drinking water WRAS,ACS Curve tolerance ISO9906:2012 3B Model A Start pressure 31.91 psi Materials Pump housing Composite Impeller Composite Installation Range of ambient temperature 32 .. 131 °F Maximum operating pressure 116 psi Maximum permissible inlet pressure 43.5 psi Type of inlet connection R Type of outlet connection R Size of suction port 1 inch Size of outlet port 1 inch Pressure rating for connection PN 8 Liquid Pumped liquid Water Liquid temperature range 32 .. 113 °F Selected liquid temperature 68 °F Density 62.29 lb/ft³ Electrical data P1 max. 870 W Rated power – P2 0.764 HP Main frequency 60 Hz Rated voltage 1 x 230 V Maximum current consumption 3.72 A Enclosure class (IEC 34-5) X4D Insulation class (IEC 85) F Length of power cable 4.92 ft Power plug No plug No plug Others Net weight 26.5 lb Gross weight 30.9 lb Shipping volume 1.62 ft³ Storage temperature range -40 .. 158 °F Warranty: 2 years ============================ To see the installation method, tools and all other details, you can watch our YouTube channel:
