4 x 32 COMBAT SCOPE WITH RINGS AND MINI MOSIN SCOPE MOUNT KIT

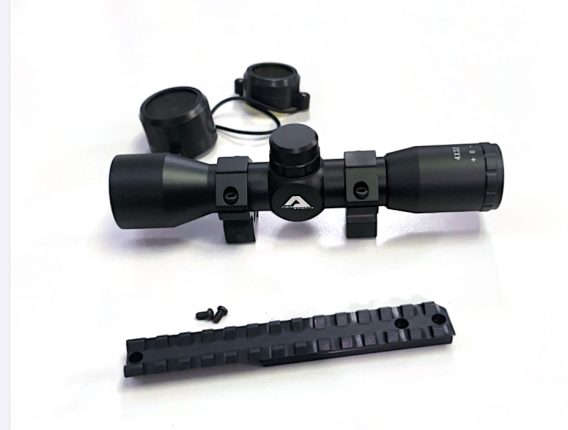

Description The 4 x 32 single power scope has a mil dot inspired reticle and comes with rings installed. Included is the Mini Mosin Mount (KSA00419) that is designed for use ONLY on our Mini Mosin-Nagant 9130 or Carbine M38 rifles. This package deal saves you $17.99 by purchasing together.   INSTALLATION INSTRUCTIONS (Mini Mosin Scope Mount Kit: KSA00419) Remove the two 6 x 48 plug screws on the front of the receiver. Remove the rear sight leaf from the rear sight block by removing the 6 x 48 x 250 flat head screw, (save for installation below). Place the scope mount in position, then using the 6 x 48 flat head screw previously removed in step #2, insert and start into the front hole of mount, (do not fully tighten). Use the 2 6 x 48 screws provided and place them into the rear holes in the scope mount into the front of the receiver then tighten down to 8-10 lb/in. Tighten up the 6 x 48 x 250 flat head screw through rear sight block at the front of the scope mount to 8-10 lb/in. Helpful Hint: Make sure you have the proper bit/tool selected to tighten screws,(do not over-tighten). Mount your selected optic and have fun!
