ADAM Audio S3H Dual 7 inch 3-way Powered Midfield Studio Monitor

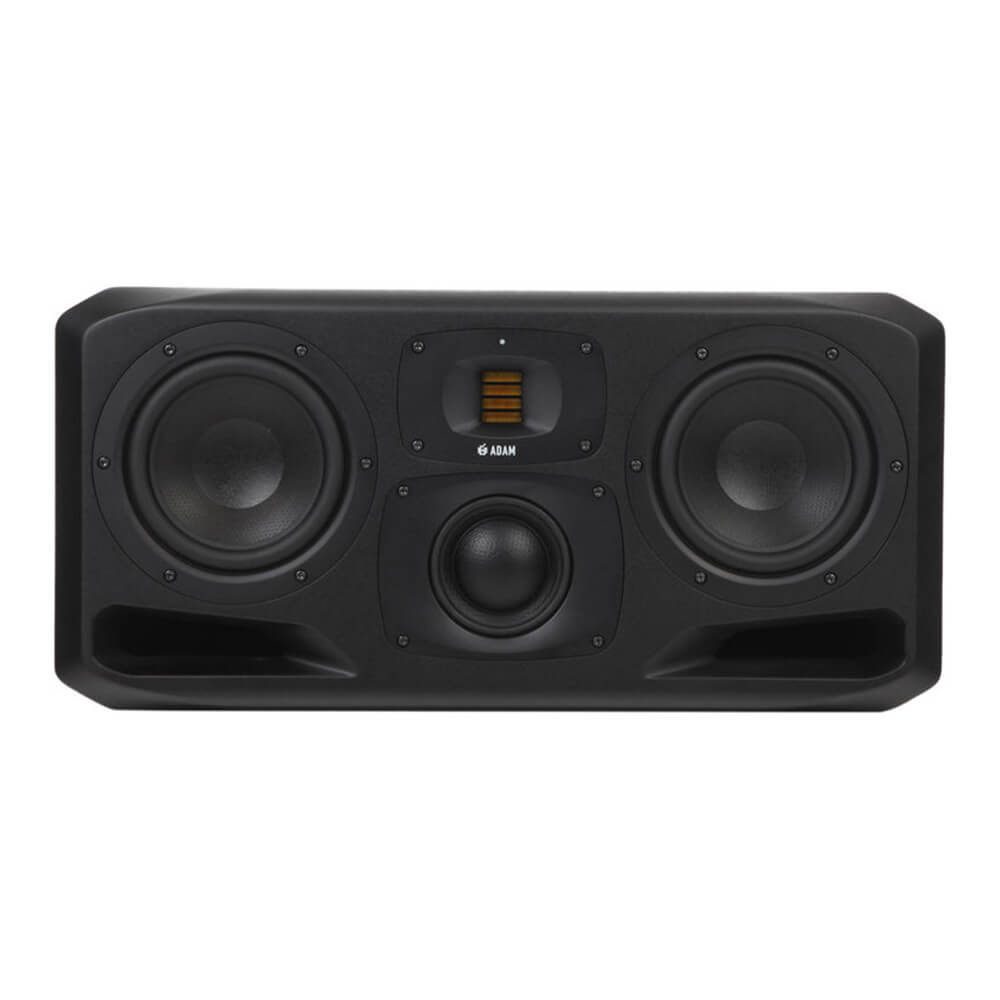

ADAM Audio S3H Overview Adam Professional Audio’s S3H is an active studio reference monitor designed for horizontal placement in medium- and small-sized control rooms. It has two 7″ HexaCone woofers, a 4″ dome/cone hybrid midrange driver, and a handcrafted folded-ribbon tweeter, with a combined RMS power of 1350W. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), provide a large, stable sweet spot. The frequency response of the S3H, designed for transparency, is remarkable, ranging from 32 Hz to 50 kHz. A wide range of DSP parameters, from equalization to delay, are available for adapting the monitor to the environment and personal tastes. The rear panel has an OLED display and a push-button/rotary encoder for parameter adjustment. Connect a computer to the USB Type-A connector for easy remote access to all S3H settings. Two inputs, balanced analog and AES3 digital, are accessible via XLR connectors. An XLR AES3 output is provided to transport digital signals to the second monitor, as required for proper digital signal flow. Adjust the input sensitivity and output level as appropriate. Load and store voicing presets to quickly configure monitor parameters. If you want to make more tone modifications, there is a 6-band parametric EQ with high-pass and low-pass filters. For timing changes, use a delay of up to 5 milliseconds. Adam S Series monitors, which are custom-designed with no off-the-shelf components, are handcrafted in Berlin with rigorous production standards. Two 7-inch ELE low-frequency drivers ADAM Audio’s S series monitor speakers have drivers that are the result of years of in-house research and development, as well as the most recent developments in technology and materials science. ADAM’s expanded Linear Excursion (ELE) bass drivers, which were designed specifically for the S series, use the Symmetrical Magnet Assembly (SMA) to provide optimum low-frequency reproduction with expanded dynamic range and coloration-free sound. The ELE driver has a strong yet lightweight honeycomb driver cone, a highly efficient, self-cooling linear magnet assembly, linear suspension and damping systems with a low-loss speaker surround, a vented symmetrical voice coil, and an optimized driver chassis/basket design. The S3H’s two 7″ woofers enhance response down to 30Hz, making it appropriate as a primary monitor in medium-to-large control rooms without the need for a subwoofer. S-ART folded-ribbon tweeters ADAM Audio’s S-ART folded-ribbon tweeter, unlike conventional loudspeakers, employs a pleated diaphragm capable of moving air four times quicker than the folds themselves. The S-ART tweeter, handcrafted to the finest specifications, produces spectacular highs up to 50kHz and fills the soundfield with astonishing clarity, authentically communicating every facet of the source material. The S-ART high-frequency driver, manufactured and thoroughly tested in ADAM’s Berlin facilities, is a rare exception in today’s automated mass manufacturing. 4-inch DCH midrange driver. The S3H’s 4″ DCH MF driver, with its unique hybrid dome/cone one-piece construction designed specifically for the S series by ADAM’s in-house engineers, handles the critical midrange region with extreme precision, allowing you to easily place vocals and instruments in the stereo field, confident that your mix will translate to the world outside your studio. The DCH midrange, which combines the greatest features of both cone and dome drivers, is both sweet and detailed, allowing you to work for extended periods of time without experiencing listening fatigue. proprietary waveguide technology. ADAM Audio’s innovative waveguide technology benefits both the DCH midrange driver and the S-ART tweeter, improving the precision of the drivers’ off-axis response. The newly developed Midrange and High-frequency Propagation Systems (MPS and HPS), which are milled from solid aluminum, help deliver stable, wide-ranging dispersion, allowing production teams of two or more people to work in the stereo or multi-channel sweet spot at the same time, which is common practice in larger control rooms. Custom DSP engine with linear response. Using cutting-edge SHARC processing technology, the S series’ unique DSP optimizes the system’s loudspeaker crossovers to produce linear response throughout the full frequency range while also providing user sound-tuning EQ, room tuning, and voicing capabilities. The DSP also provides limiter-based high-frequency driver protection, processes signals from the AES3 digital inputs, and supports a variety of extension options. Software upgrades are readily performed using the system’s USB connector, which also allows you to connect to PCs and control DSP features through software. Designed without compromises. The S series monitors were created without compromise to be high-precision professional reference monitors that flawlessly replicate any signal fed into their inputs. You can expect exceptional transparency, dynamic response, and flexibility in placement and operation, as well as an open, natural, and non-fatiguing sonic presentation that will delight your ears and allow you to make sound decisions even during lengthy recording and mixing sessions. ADAM Audio’s large cabinet architecture is scientifically engineered to prevent unwanted vibrations and coloring, while its rounded corners reduce diffraction distortion. The front baffle has generously carved bass reflex holes that help offer bass reproduction with very minimal compression and enable installation close to walls. Authoritarian ICE Power With decades of expertise in constructing professional sound systems for recording and broadcast studios, as well as venues of all sizes, they realize that underpowering is never an option. Control room main monitors like the S3H require authoritative power, which ADAM Audio provides with its strong, patented 1,350-watt PWM ICE Power quad-amplification system. Each of the S3H’s bass units is powered by a 500W Class D amplifier, with additional 300W and 50W Class D amps for the DCH midrange and S-ART treble speakers. The S3H reference monitor is built for discriminating audio professionals and mission-critical applications, combining the no-compromise accuracy of ADAM Audio’s proprietary drivers with the company’s custom amplification. ADAM Audio S3H Active Studios Main Monitor Features:  The horizontal 3-way system has 2 x 7″ HexaCone woofers, 1 x 4″ DCH midrange, and an S-ART tweeter.  The S-ART tweeter is handcrafted in Berlin and constructed to precise specifications.  Newly designed HPS and MPS waveguides are made from a solid piece of aluminum.  The new midrange driver has a one-piece hybrid dome/cone (DCH) construction.  Custom Extended Linear Excursion (ELE) bass drivers.  Uniquely developed Symmetrical Magnet Assembly (SMA).  Large bass reflex ports on the front baffle.  Efficient 1,350W PWM ICE Power Quad-Amplification.  Linear frequency response from 30Hz to 50 kHz.  Peak sound pressure per pair at 1 m exceeds 126 dB.  Custom DSP engine.  Analog XLR inputs.  AES3 digital input/output.  The normal warranty is 2 years, but may be extended to 5 years by registering in My ADAM User Area.  Sold separately.
