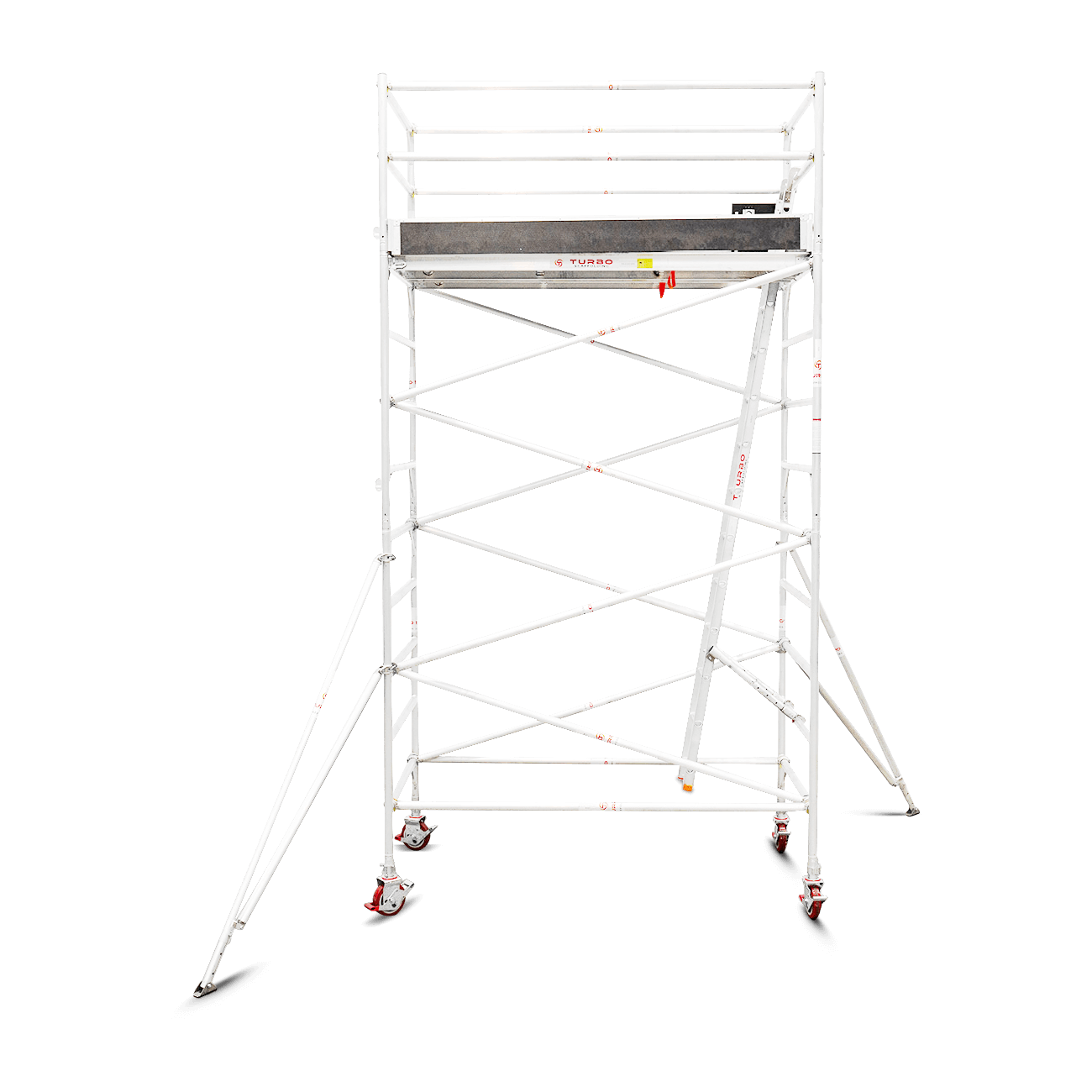

3.9m – 4.2m Wide Aluminium Mobile Tower (Standing Height)

Description Tower Inclusions Assembly Video If you need to have more than 1 worker on the scaffold at the same time or require space to load materials then Turbo Scaffolding Sydney has a range of wide aluminium scaffold towers that will suit. They are ideal for all kinds of small jobs that require a stable platform at height. Perfect for painters to stack paint, or offers to have 2 workers with room to move around, this scaffold tower will extend to over 4mtr standing height. You will need to be a qualified scaffolder to erect this mobile tower. With a SWL of 450kg’s this wide aluminium tower can be loaded with all your materials so you don’t have to go up and down multiple times. Turbo Scaffolding recommends 2 people for erection and stripping as the total weight of the scaffold is 195.20kg’s and has a generous width of 1.3Mtrs. Delivery available in Sydney, Melbourne, Brisbane and Perth metro region only or you can arrange for a pick up from one of our Sydney, Melbourne, Brisbane or Perth location warehouse. Adjustable Castor Wheels Our mobile scaffold castor wheels are made of polyurethane and 200mm thick. They have a safe working load of 225kgs and are fitted with a working locking system to prevent rolling or any movement when braking. All wheels feature 360 degree movement to provide easy transport. Wide Aluminium Frames (2.0m) The larger of the frames for the wide aluminium tower with an overall height of 2.0m. The top of the frames have a spigot which can be used to insert into other frames to extend. The locking pin can be applied for quick safety measures so there is no movement. Wide Aluminium Frames (1.6m) The mid-size of the frames for the wide aluminium tower with an overall height of 1.6m. The top of the frames have a spigot which can be used to insert into other frames to extend. The locking pin can be applied for quick safety measures so there is no movement. Wide Guard Rail This guard rail system is the top frame to provide safety atop the standing structure. The frame is durable and have 2mm wall thickness on the aluminium tube. This guard rail is suited for the wide tower and has an overall height of 1m. Horizontal Brace (Gold) The horizontal brace is to provide stability to the structure from end to end. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. Diagonal Brace (Blue) The diagonal brace is to provide more stability to the structure than the horizontal brace. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. Platform with Hatch Deck The platform is manufactured with marine plywood and has an safe but simple ladder hatch, which provides safe access to passengers between levels. Aluminium Scaffold Ladder 4m Our Aluminium ladders feature an offset brace to secure ladders on certain angles while hooking into the scaffold frames. The ladders come in 4m sizes. S3 Stabilisers, 2300mm to 3000mm Stabilizer legs attach to the scaffold via couplers to help stabilize the structure and provide support. The stabilizers have the ability to alter the range required. The rubber soles on the swivel legs provide extra support and grip. 1.3m Toe Board Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects.  2.5m Toe Board Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects.  Toe Board Platform Diagonal Brace Safety Pin Frame Ladder Stabilisers Castor Wheel
