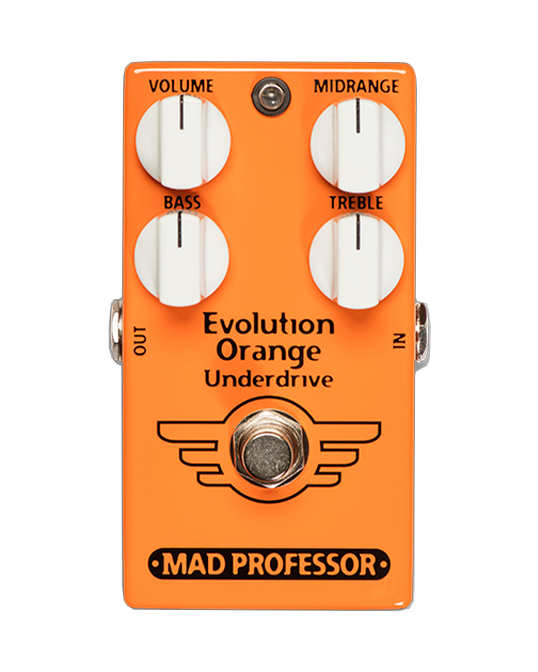

Evolution Orange Underdrive (B-stock)

Product descriptionB-Stock, ex-demo unit with dual lock on the bottom plate. Evolution Orange Underdrive (EOU) offers a new way to approach your tone. Instead of overdriving your clean tone, now you can get cleaner tones from your favorite overdriven tone. That is why we call it Underdrive. Evolution Orange Underdrive works really well with vintage single channel amps that sound great when you push them to overdrive. When you turn down the volume from your guitar to clean that tone, the sound often gets a bit too dark and the clean tones are not as good as the overdriven tone. With EOU you can tailor your cleaner tone with the four pots. The Evolution Orange Underdrive works by lowering the midrange as that is where the overdrive mostly is. You can dampen the amplifier input with the EOU’s Volume control and then set the Bass and Treble to tailor your clean tone. EOU can also be used to boost the mids by setting the Midrange and Volume up. Product detailsCONTROLS: MIDRANGE: ± 15 dB at 400Hz TREBLE: ± 15 dB at 7KHz BASS: ± 15 dB at 100Hz VOLUME: sets the overall output volume level. TECHNICAL SPECIFICATIONS: Power requirements: 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve. Current consumption: 10 mA at 9V Supply Voltage Range: 8-18VDC, 9V Recommended. Input impedance: 500k Ohms Output impedance: 5k Ohms True Bypass EAN: 643003309 131 9 Made in Taiwan Shipping costs Shipping to EU 20,00 €
